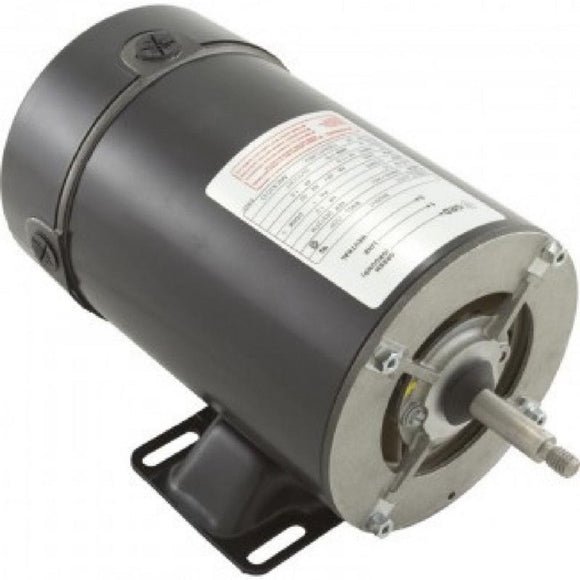

Regal Beloit BN24V1 0.75HP 115V Single Speed Pool or Spa Pump Motor

More Views

Regal Beloit BN24V1 0.75HP 115V Single Speed Pool or Spa Pump Motor

Code: REG-BN24V1-BS

Price: $173.47
Unit price per
Availability: In stock

Details

Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8" on center measured across the shaft. Shaft is 1/2" diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate.

Features:

115 Volts 9.8 amps 60hz. Automatic Overload Protection
Thru-Bolt mount Rigid Base
Non-Reversible CCW Facing the Shaft
Ball Bearings Stainless Steel Shaft
