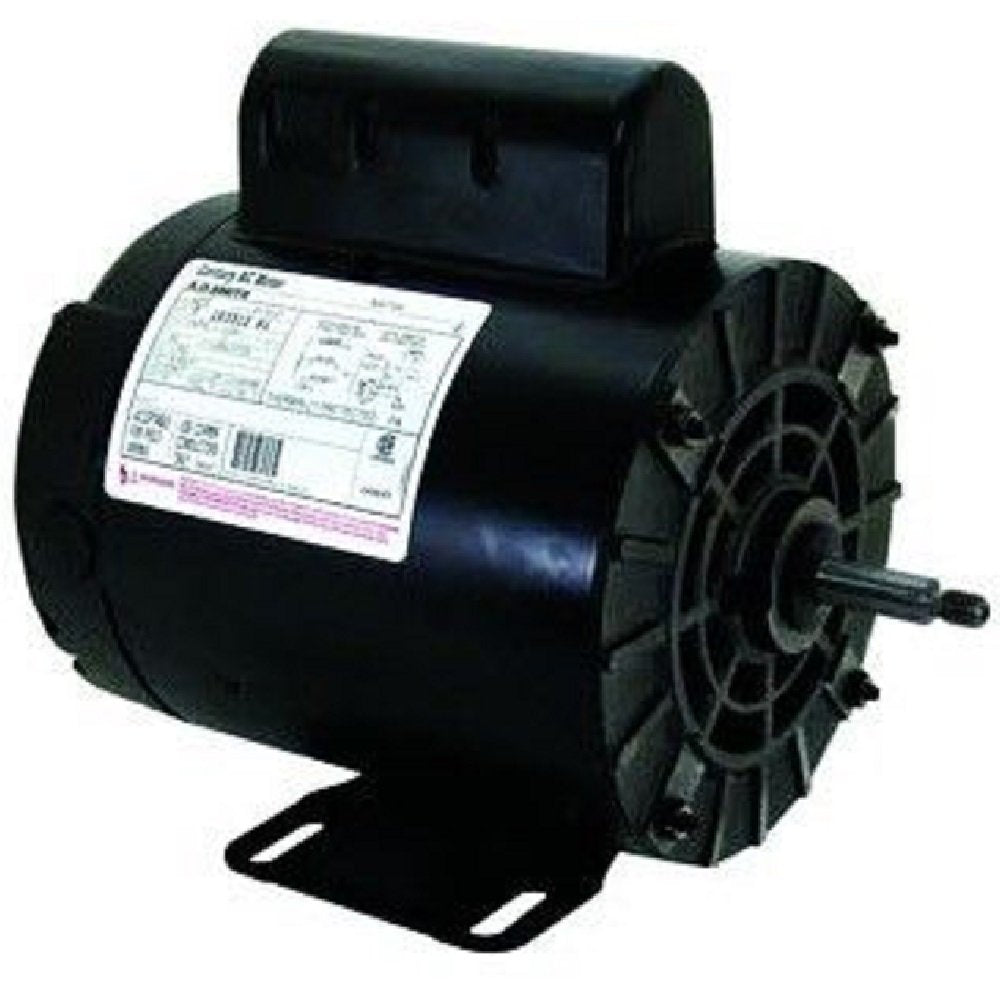

A.O. Smith B2234 Waterway 3HP 2SP 230V Motor Swimming Pool Motor

More Views

A.O. Smith B2234 Waterway 3HP 2SP 230V Motor Swimming Pool Motor

Code: AOS-B2234-HZ16

  • Price: $462.07
    Unit price per
  • Shipping Weight:34.0
  • Availability: In stock

Details

A.O. Smith pump motors are Pool/Spa/hot tub Energy Efficient and will save you pump motor money on your electric pump motor bill compared to your old pump motor.

Application:
  • Replacement Pool and Spa Motor
Technical Specifications:
  • 3.0 HP-SPL
  • 3450/1725 RPM
  • 230 VOLTS
  • 1.0/3.5 AMPS
  • 56Y FRAME
  • INSULATION CLASS F
  • TWO SPEED MOTOR

Waterway #3721421 Replacement performance data:Total output (Horsepower (HP) x Service Factor (SF)) of replacement motor must equal or exceed motor being replacedFor Sizing o replacement pumps please take the following information from the name plate:

  • 1. Volts
  • 2. HP (Horse Power)
  • 3. RPM
  • 4. FR (Frame)
  • When Replacing Motors, the seal and gaskets should always be replaced.
Specifications:
  • Ball Bearings
  • 50C Ambient
  • 3/8-16 UNC-2A threads includes Slinger
  • Four thru bolts on a 5.812 Bolt Circle
  • Auto Protector
  • Permanent Split Capacitor
  • 56Y Frame
  • 3450/1725 RPM
  • 6 1/2" Dia., 3 1/2" Shaft Height
