Details

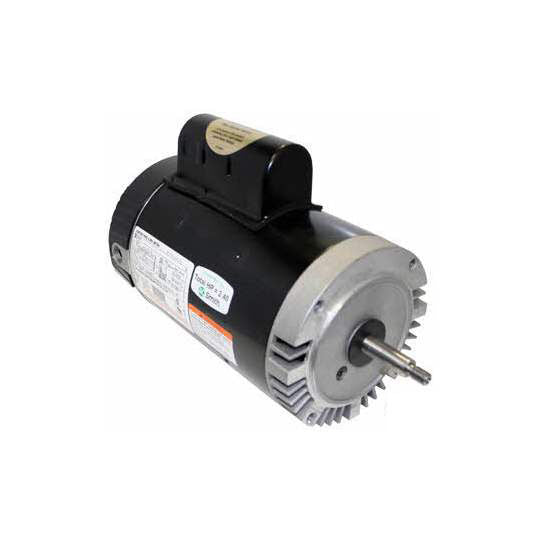

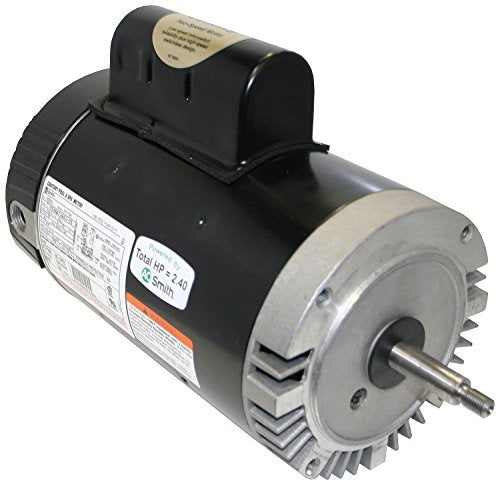

2-Speed 56J frame pool pump motor. Can also be used on any pump requiring a 56J frame motor. This is a full rated motor with a High Service factor. Amps are stated based on the full service factor. Stainless steel shafts, sealed ball bearings, switchless. Motor does not come with 2 speed switch. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate.

• 230 volts 11.4/4.1 amps 60hz.
• Automatic Overload Protection - Service Factor 1.20
• C-Face Mount, Round Body-no base
• Non-Reversible - CCW Rotation facing the shaft
• 5/8" diameter threaded shaft
