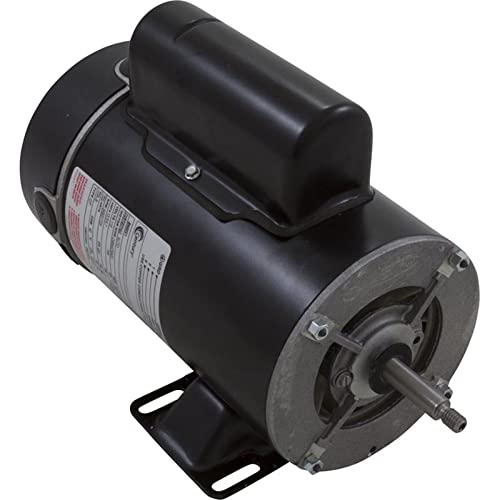

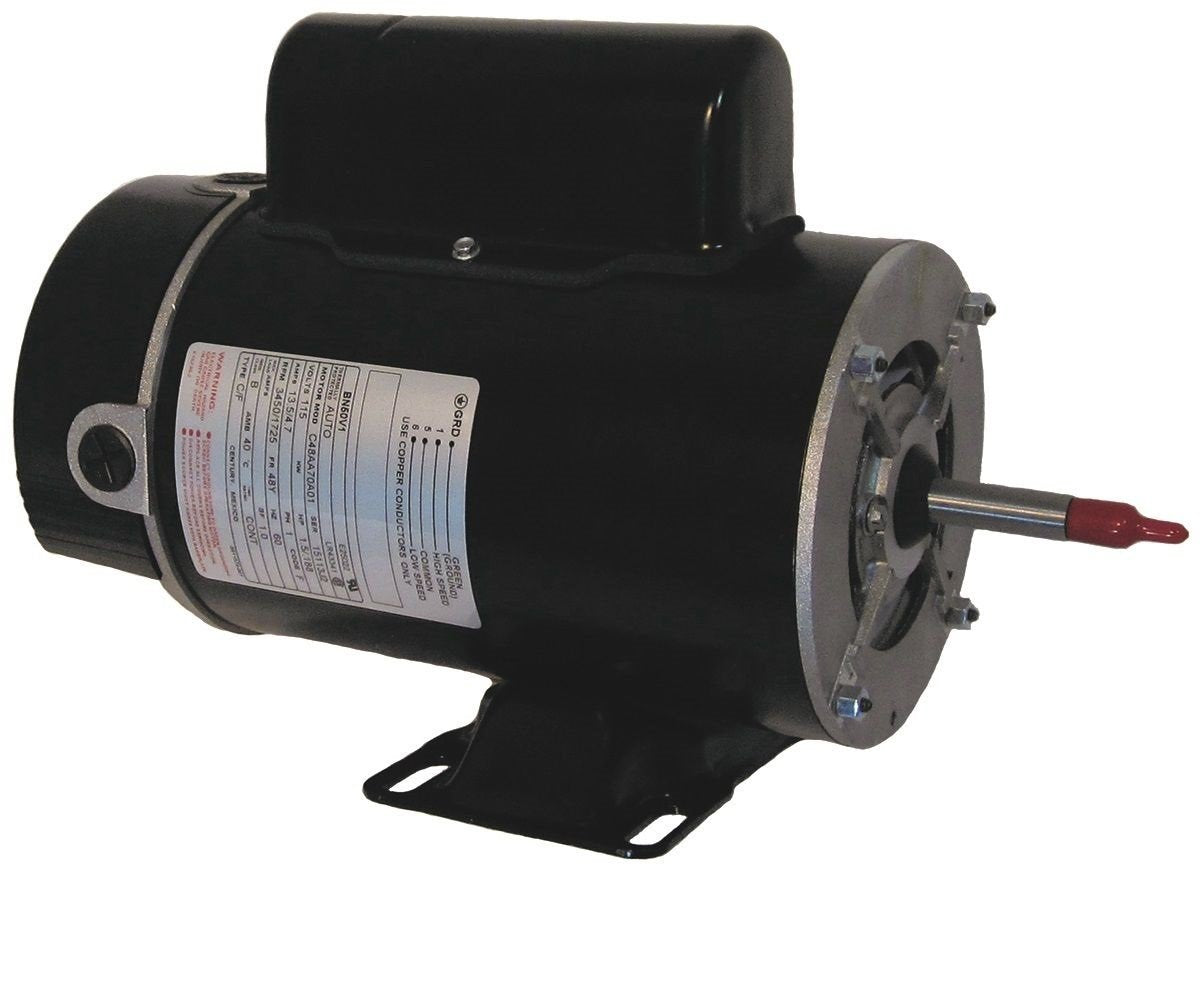

Above Ground Swimming Pool Pump Motor

Features:

• Class B Insulation
• 40°C Ambient
• 12 & 3 O'clock Conduit Entries
• CCW Pump End Rotation
• Through Bolt Mount
• 3-1/2" Shaft Height
• 48/56 Base Mounting
• Four Thru Bolts on a 5.146 Bolt Circle

• Horsepower: 1.5
• RPM: 3450
• Rotation: Counter-clockwise
• Frame size: 48Y
• Enclosure type: ODP
• Phase: Single
• KW: 1.119
• Voltage: 115
• Amperage (full load): 16.4
• Frequency (Hz): 60
• Service factor: 1
