Details

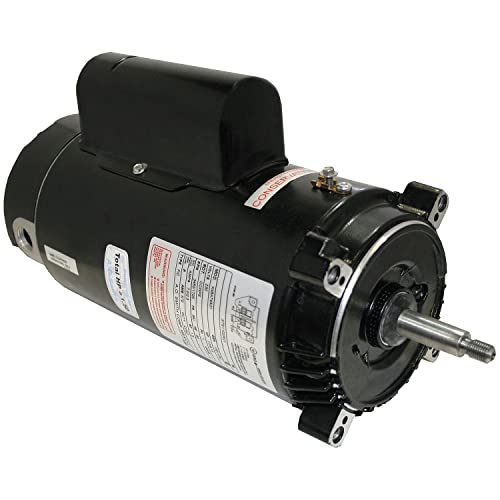

A. O. Smith NEMA C flange swimming pool filter pump motors are carefully engineered to meet the rugged demands of pool duty. Two sealed ball bearings (with large 304 bearing on shaft end) offer ample capacity for extended life. Bearings are selected for quietness and are lubricated for life with greases specifically chosen for moisture and heat resistant qualities. Aluminum end frames are accurately machined for maximum concentricity and minimum runout.

• All Copper Windings
• 303 Stainless Steel Threaded Shaft
• Capacitor Start/Capacitor Run
• Auto Protector
• Open Dripproof
• Rotation: CCW Pump End
• 40°C Ambient
• "1081" Design
• Sealed Switch Design
• Sealed Ball Bearings (304 Shaft End)
• 60 Hz

• Motor primary use: Pool Pump Motor
• Horsepower: 1
• RPM: 3600
• Rotation: Counter-clockwise
• Frame size: 56J
• Enclosure type: ODP
• Mounting: Face
• Shaft diameter (in): 0.625
• Shaft type: Smooth with 7/16-20 UNF-2A threaded
• Bearings: Sealed ball bearings
• Frame material: Rolled steel

• Phase: Single
• Kw: 0.746
• Voltage: 230
• Amperage (full load): 7
• Frequency (Hz): 60
• Service factor: 1.5
