Details

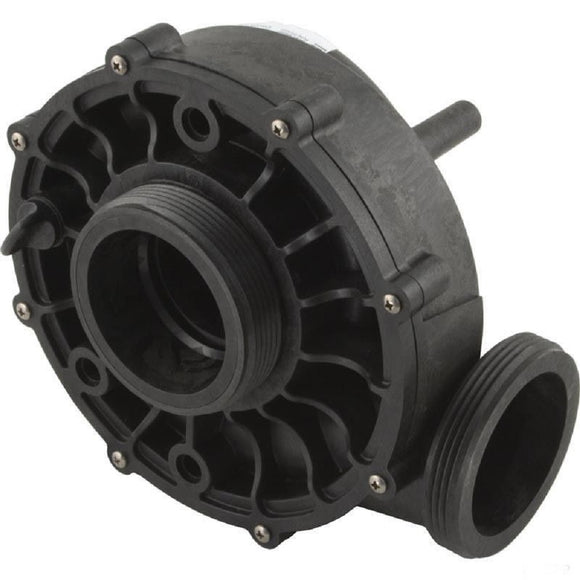

This is the wet end portion of a 4 HP XP3 pump. This is basically a pump without a motor.

This wet end is used with a 4 HP, 48Y frame or a 56Y frame thru-bolt style motor. This has 2 sets of brass threaded inserts for use with either size motor. The motor used may be either a single speed or a two speed. The wet end may be rotated 90 degrees to change the discharge position.

The inlet and outlet are standard 2-1/2" buttress threads. See below for exact dimensions. This has a center inlet and side discharge.

• Electrical: Used with 4 Horsepower motors
• Plumbing: 2-1/2" Buttress External Threads (Approximately 3-11/16" actual outside diameter)
• Motor Type: 48Y or 56Y Frame Thru Bolt
