Waterway 310-1440 2.5" Executive 56 Frame 4HP Wet End for Pump

More Views

Waterway 310-1440 2.5" Executive 56 Frame 4HP Wet End for Pump

Code: WAT-310-1440-HZ16

  • Price: $100.00
    Unit price per
  • Shipping Weight:3.0
  • Availability: In stock

Details

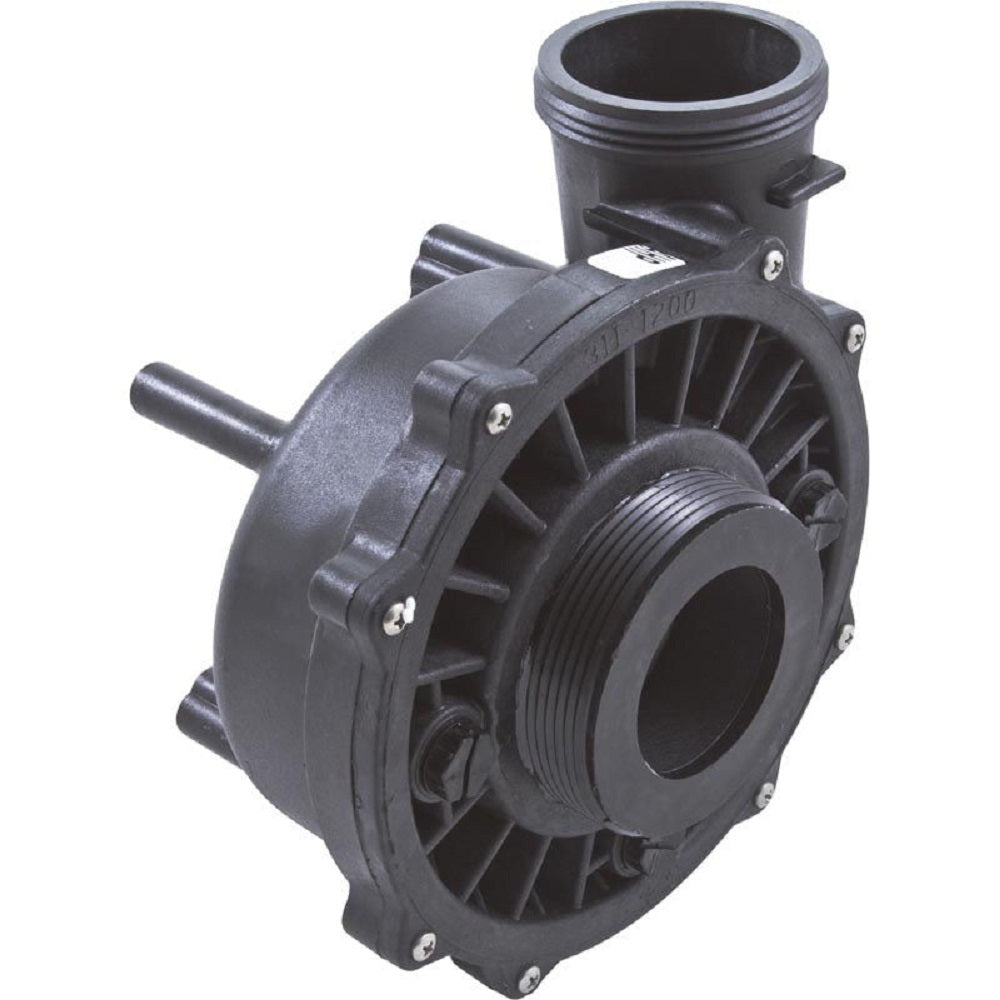

This is the Wet End portion of a 4 HP Executive 2-1/2" suction, 56Y frame spa pump. This is basically a pump without a motor.

This Wet End is used with a 4 HP, 56Y frame, thru-bolt style motor. The motor used may be either a single speed or a two speed. The Wet End may be rotated 90 degrees to change the discharge position.

The inlet is standard 2-1/2" buttress and outlet is standard 2" buttress threads. See below for exact dimensions. This has a center inlet and side discharge.

Features:
  • 2.5" inlet x 2" outlet (2" measures 3" Outside Diameter 2.5" measures 3-5/8"
  • 4.0 HP executive Wet End complete 56 frame 2-1/2" x 2"
  • Outside Dimension Of The Front Face Plate Measures 7-1/2"
