Waterway 310-1510 2.5" Executive 56 Frame 5HP Wet End for Pump
Unit price/ per
- Availability: In stock

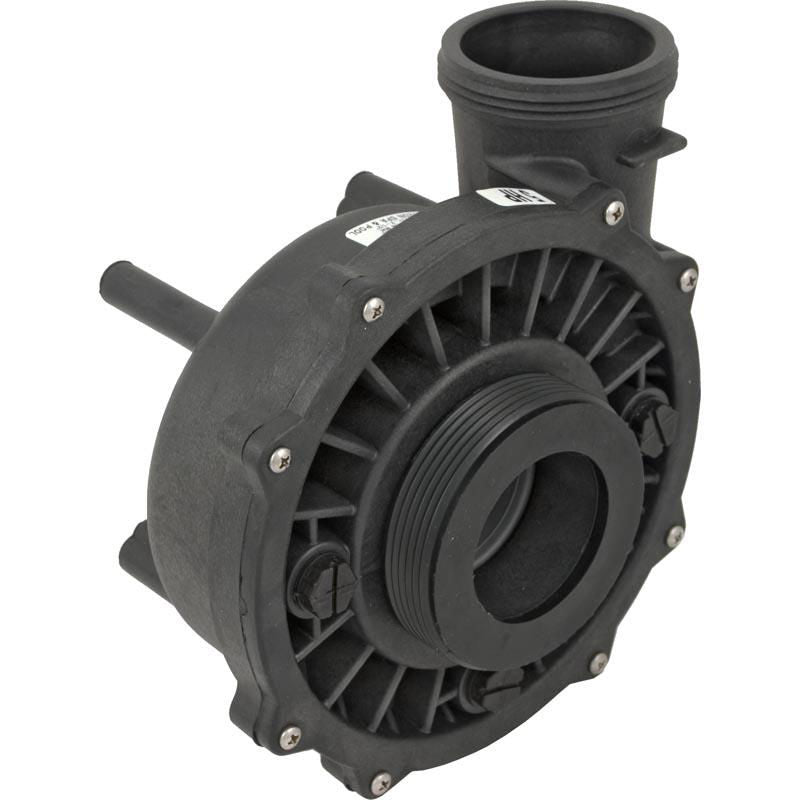

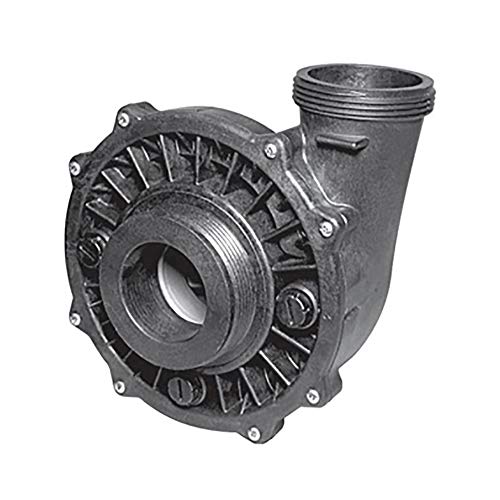

This is the Wet End portion of a 5 HP Executive 2-1/2" suction, 56Y frame spa pump. This is basically a pump without a motor.
This Wet End is used with a 5 HP, 56Y frame, thru-bolt style motor. The motor used may be either a single speed or a two speed. The Wet End may be rotated 90 degrees to change the discharge position.
The inlet is standard 2-1/2" buttress and outlet is standard 2" buttress threads. See below for exact dimensions. This has a center inlet and side discharge.Features:
- 2.5" inlet x 2" outlet (2" measures 3" Outside Diameter 2.5" measures 3-5/8"
- 5.0 HP executive Wet End complete 56 frame 2-1/2" x 2"
- Outside Dimension Of The Front Face Plate Measures 7-1/2"
