Waterway 310-1720 Executive 2HP 230V 56Y Frame Wet End for Pump

More Views

Waterway 310-1720 Executive 2HP 230V 56Y Frame Wet End for Pump

Code: WAT-310-1720-HZ16

  • Price: $102.57
    Unit price per
  • Shipping Weight:3.0
  • Availability: In stock

Details

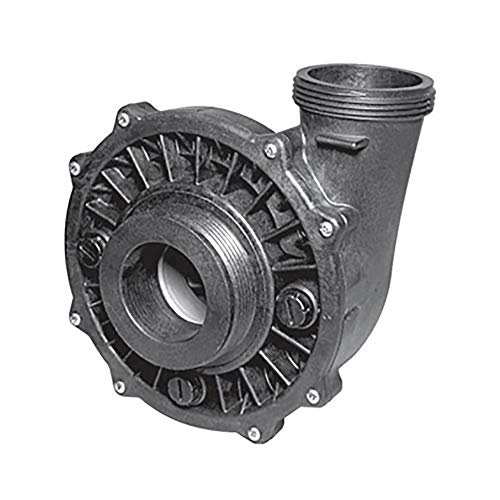

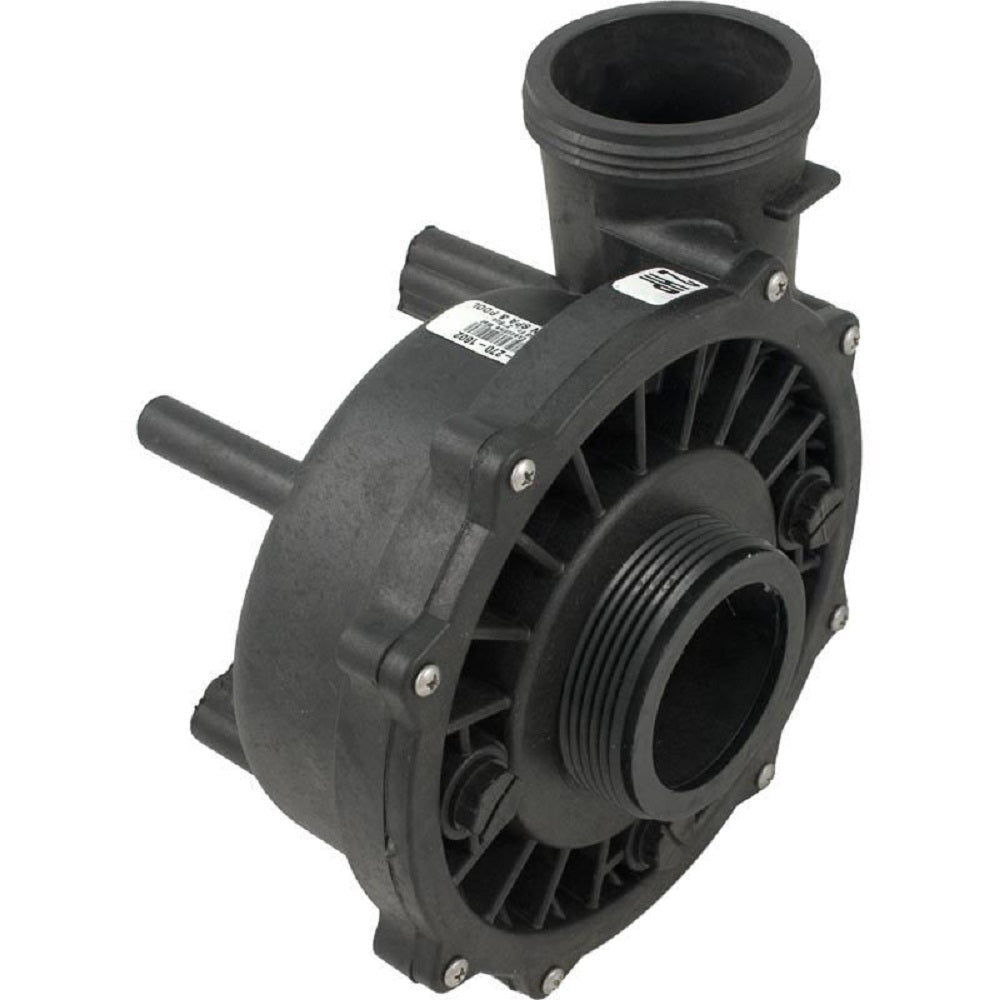

This is the wet end portion of a 2 HP Executive 2" suction, 56Y frame spa pump. This is basically a pump without a motor.

This wet end is used with a 2 HP, 56Y frame, thru-bolt style motor. The motor used may be either a single speed or a two speed. The wet end may be rotated 90 degrees to change the discharge position.

The inlet and outlet are standard 2" buttress threads. See below for exact dimensions. This has a center inlet and side discharge.

Features:
  • Electrical: Used with 2 Horsepower motors
  • Plumbing: 2" Buttress External Threads - Inlet and Outlet (Approximately 3-1/16" actual outside diameter)
  • Motor Type: 56Y Frame Thru Bolt
