Waterway 310-1910 2" Executive 48 Frame 4HP Wet End For Pump

More Views

Waterway 310-1910 2" Executive 48 Frame 4HP Wet End For Pump

Code: WAT-310-1910-HZ16

  • Price: $100.00
    Unit price per
  • Shipping Weight:3.0
  • Availability: In stock

Details

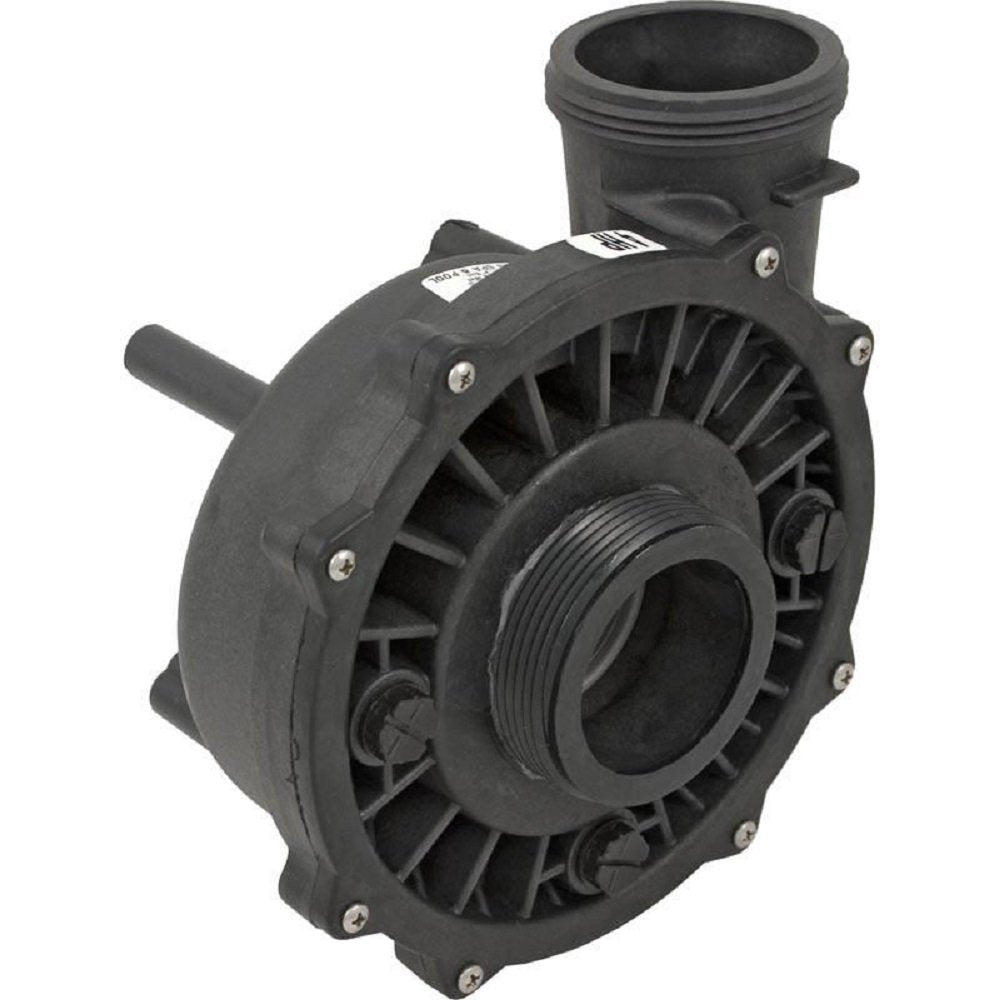

This is the Wet End portion of a 4 HP Executive 2" suction, 48Y frame spa pump. This is basically a pump without a motor.

This Wet End is used with a 4 HP, 48Y frame, thru-bolt style motor. The motor used may be either a single speed or a two speed. The Wet End may be rotated 90 degrees to change the discharge position.

The inlet and outlet are standard 2" buttress threads. See below for exact dimensions. This has a center inlet and side discharge.

Features:
  • 4 HP
  • 2 inch or 2-1/2 inch Intake and 2" Discharge
  • Outside diameter of Intake measures 3 inches or 3-1/2 Inches
  • Outside diameter of Discharge measures 3 inches
  • Use with a 48 frame motor
