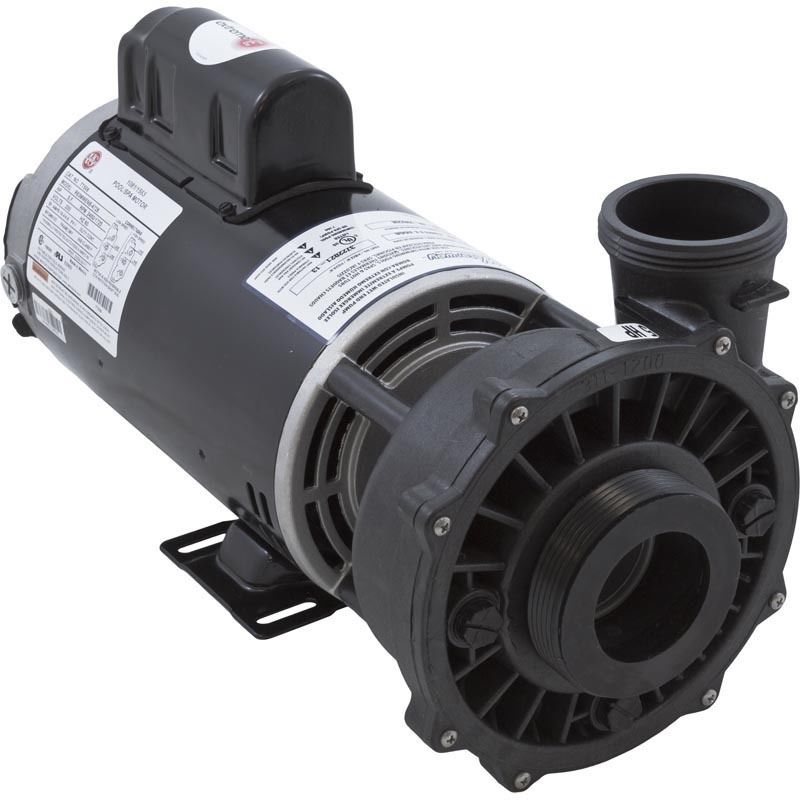

Waterway 3722021-13 2.5" x 2" 5.0HP 230V 2-Speed 56 Frame OEM Pump

• Executive wet end designed specifically for 56-frame motors
• 56-frame motor for added strength, cooler operating temperature, and longer motor life
• Large 6-1/2" diameter wet end for higher head pressure
• 2-1/2" intake for improved flow performance and reduced noise
• Wet end can be rotated for easy installation
• Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
• Two speed motors have four sets of insulated windings for increased efficiency
• Dimensions (H x W x L): 9.08" x 8.05" x 14.775"
• Available in 1 to 5Hp and in single or dual speed

• Complete Pump Type: Portable Spa Pump
• Speed: 2 Speed (2-Spd)
• Motor Voltage: 230v
• Drain Plug Location: 3,6,9 o`clock
• Pump to Motor Foot Types: 4a
• Suction Style: Center
• Suction Connection (Physical Dimension): 3-11/16" od
• Suction Connection Type: Male Buttress Thread (mbt)
• Suction Pipe Size: 2-1/2"
• Discharge Style: Side
• Discharge Connection (Physical Dimension): 3-1/16" od
• Discharge Connection Type: Male Buttress Thread (mbt)
• Discharge Pipe Size: 2"
• Horsepower: 5.0hp
• Motor Frame: 56 Frame Thru-Bolt
• Motor Amperage/Wattage: 16.4A/4.8A
• Manufacturer: Waterway
• Pump Model: Executive
• Manufacturer Impeller Number: 310-4180
• Volute Fastening Type: 8 Screws
• Volute/Sealplate Number 315-1240
