Details

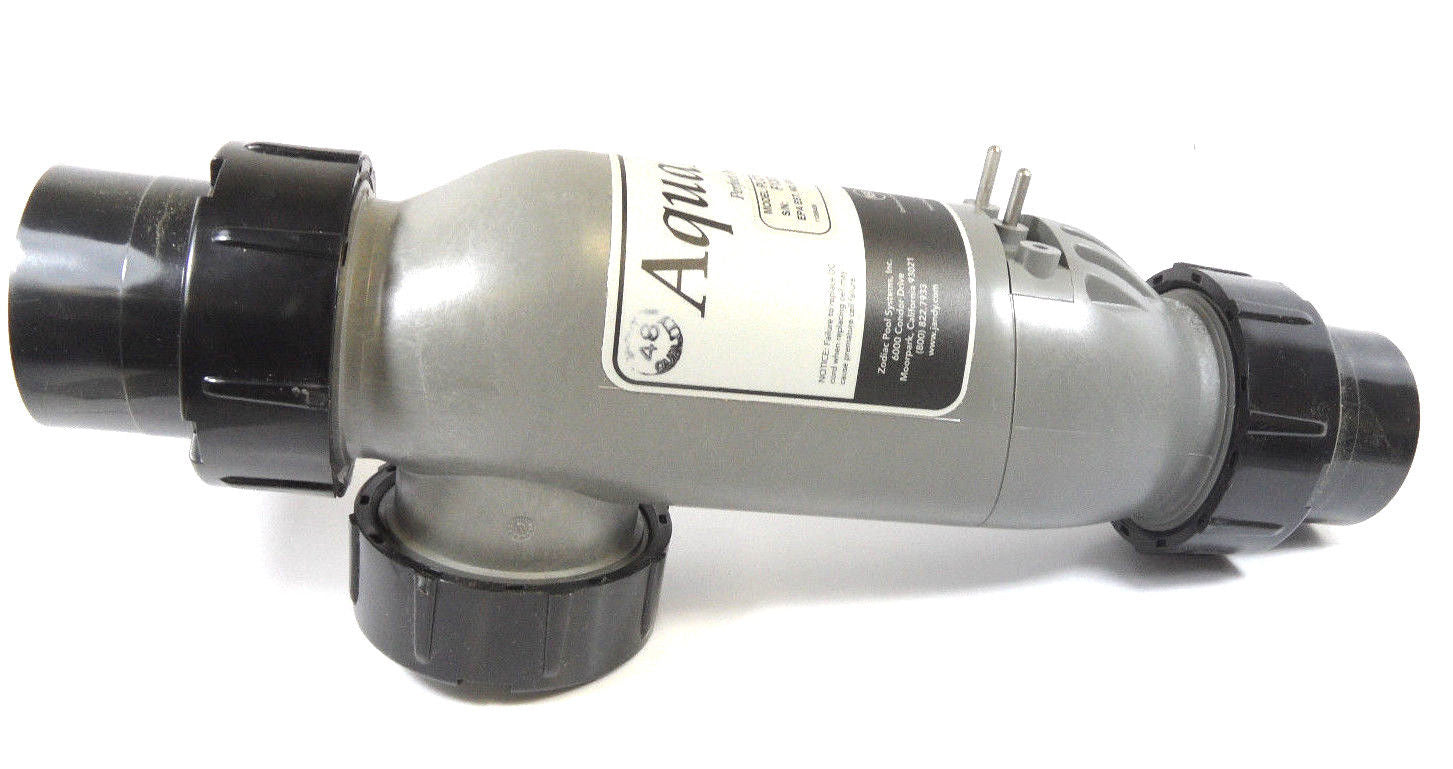

Jandy AquaPure PLC700 R0475300Saltwater Cell

Included:

• Included in this kit:
• PLC 700 Salt Cell - Compatible with ALL PLC700 Control Centers of any age.
• Black couplings connectors with O rings
• Black coupling connector to mount the sensor in place (sensor not included)
• Cap/plug (to be used if you want to continue to use your old style sensor that is mounted outside the cell.)

The New PureLink 3-Port Cell allows plumbing flexibility like never before, with both vertical and horizontal plumbing options This cell is also used on ClorMatic III systems.

3-Port Cell Additional features include:

• Integrated 90-degree plumbing option for flexible installation
• Integrated sensor port
• Slotted sensor fitting; no threads, no gluing
• Full flow cell design
• Universal Unions are 2.0 to 2.5 standard on all Jandy equipment
• Self contained cleaning kit with end caps; no more dipping into acid
• Solid titanium plates provide efficient chlorine production and long cell life
• Automatic reversing cycle keeps the cell clean from calcium build-up
• Durable housing with quick disconnect unions and power cord for simple installation and maintenance
• Interchangeable with ClorMatic 3-port cells. The PLC700 is equivalent to the ClorMatic CMC700, and the PLC1400 is equivalent to the ClorMatic CMC1400.
• The total length of the cell, including the unions tightly fit, is 16 5/8

The slotted, non threaded sensor can be integrated into one of two locations. The new design also provides easy viewing of internal plates and the included self cleaning kit will assure optimum long-term performance. Jandy universal 2-2.5 unions and the full flow design make installation easier and provide the best performance in the industry.
